BRAKING BATFLY ALUMINIUM DISC (2003-2014)

- BRAKE DISC
- SIZES: 240 x 116 x 4

Read moreShow less
€78.51
Last items in stock
Reference:
BY4502
Brand:
Description

Rear off Road Disc for

Kawasaki
- KX 125 (2003-2008)
- KX 250 (2003-2008)
- KX 250 F (2004-2014)
- KX 450 F (2006-2014)
- KLX 450 R (2007-2014)

Suzuki
- RM-Z 250 (2004-2006)

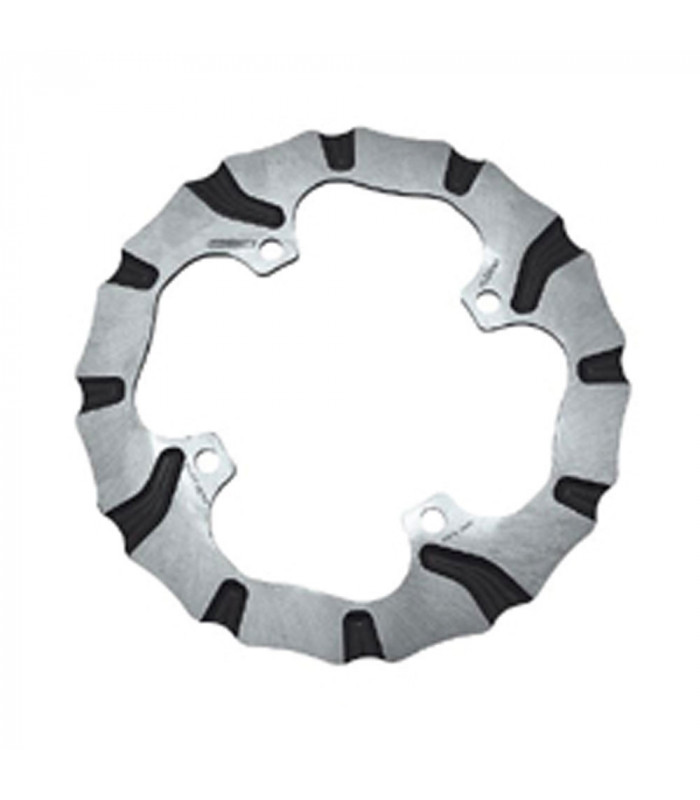

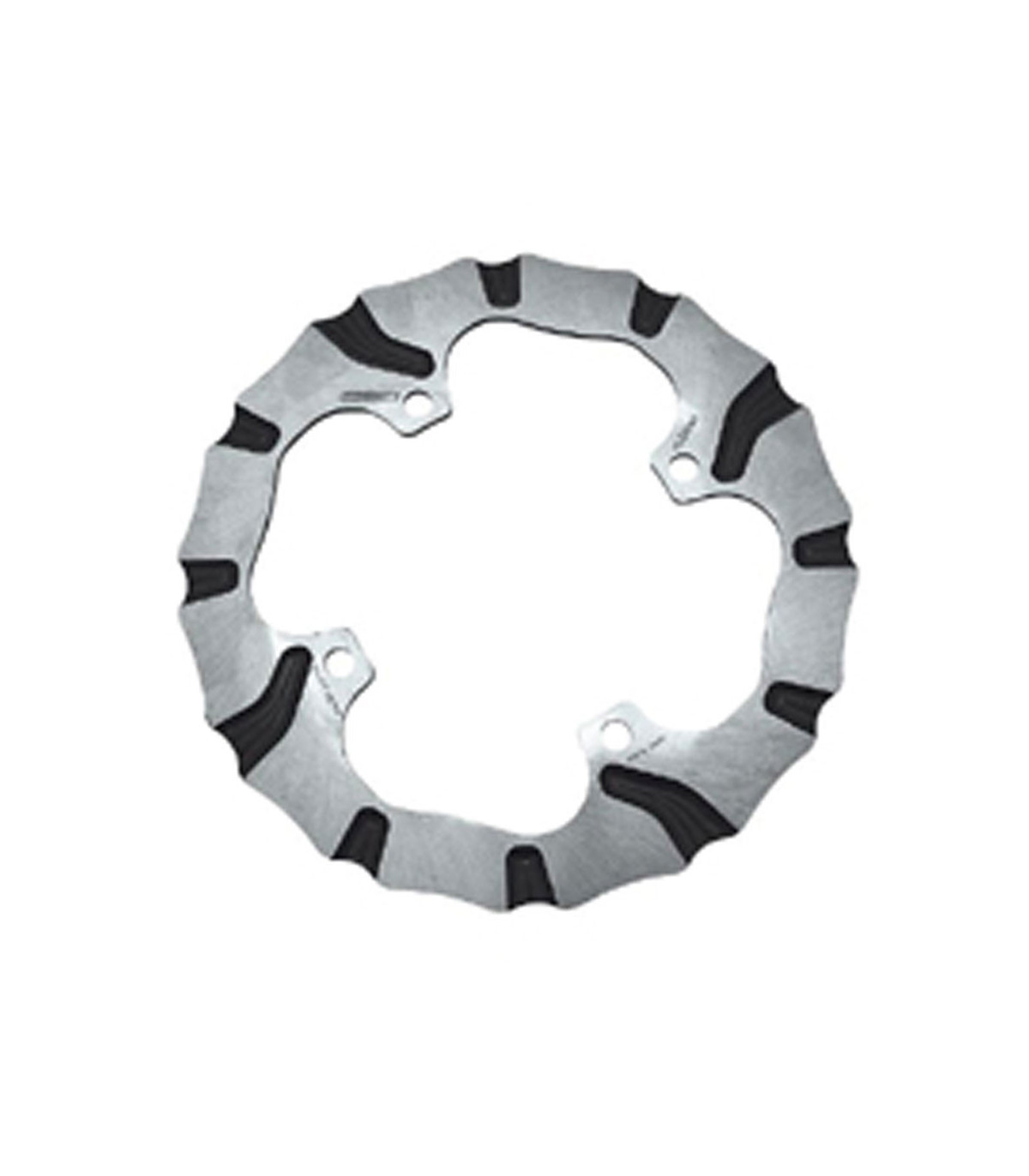

The BATFLY rotor with WAVE profile reaches a new evolution. The brake rotors outer track mounts to the newly designed carrier at 6 points; both the carrier and the rivets are now aluminum instead of stainless steel which reduces weight. The carrier is now made of ALUMINUM AL7075 T6 like the rivets; this allows for optimal shape, reduced weight & higher rigidity. The BATFLY grooves on the disc's surfaces create a self ventilating mechanism allowing the rotor to cool down. Mud and dirt are easily cleaned from the pads surface and outer braking track. The outside and inside disk's diameter have a round design which allows a better radial expansion of the disk in extreme heat conditions. Carrier and rivets are now made of high performance aluminum and allow a real improvement in handling, thanks to the reduction of the unsprung weight. The brake disc is directional. Verify that it mounts correctly by checking the rotational direction marked on the carrier. Always combine new BRAKING pads with the new disc. Run in as per mounting instructions.

Outer Diameter: 240,00
Inside Diameter: 116,00
Thickness: 4,00
No. Of Holes: 4,00
Bolt Pattern: 133,00
Holes Diameter: 10,50
Holes Type: Deburred
Floating: Fixed
Outline: Wave
Outer Ring Type: Batfly
Finishing: Painting
Material: Aisi420
Carrier Surface Treatment: Nothing

Read moreShow less
Product Details
BY4502

Data sheet

Manufacturers
BRAKING
Speciality
MX
Moto Enduro
Brand
Kawasaki
Suzuki
Models
KLX 450 R
KX 125
KX 250
KX 250 F
KX 450 F
RM-Z 250
Year
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
2014

Specific References

EAN13
8423122172837
