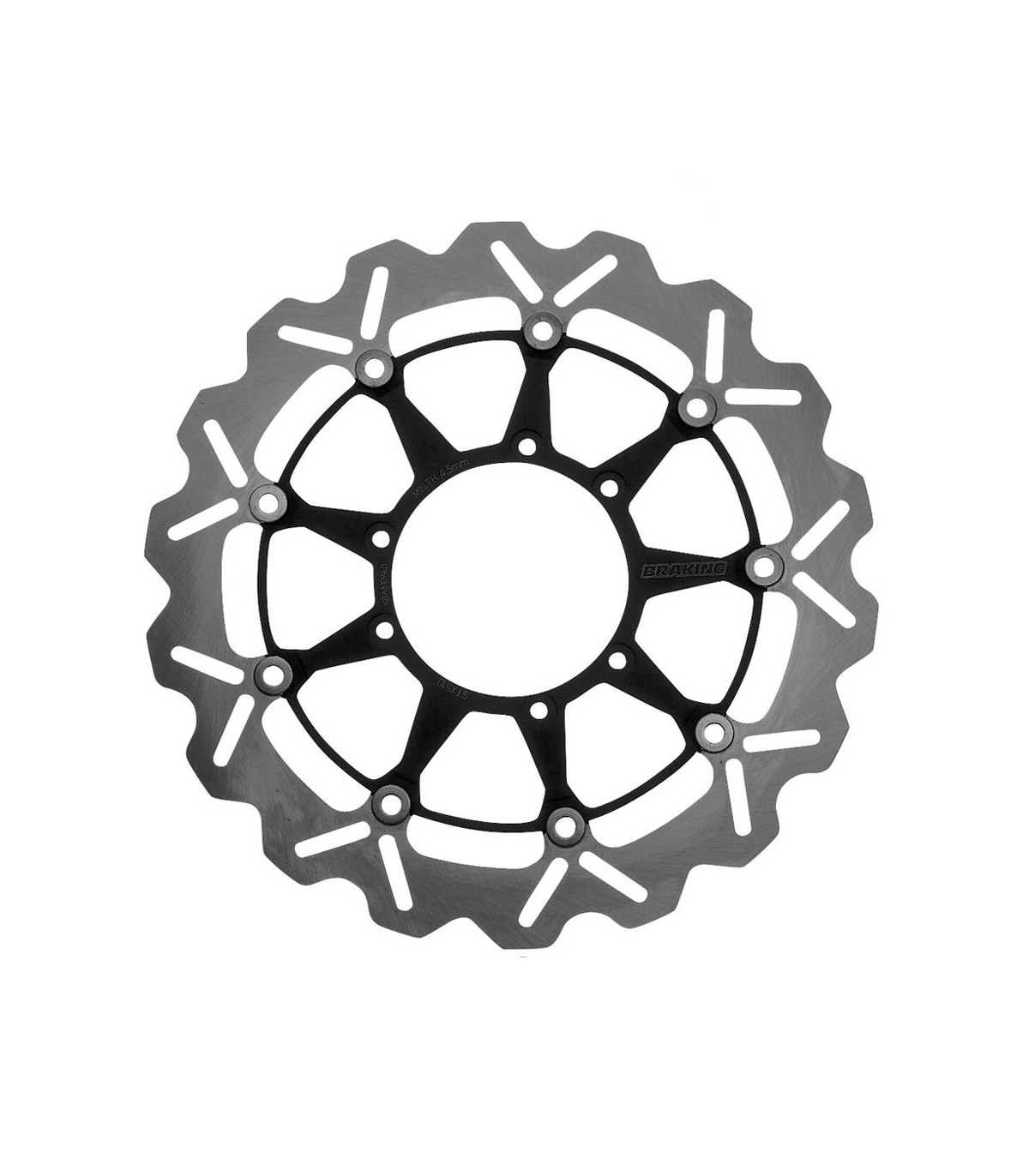

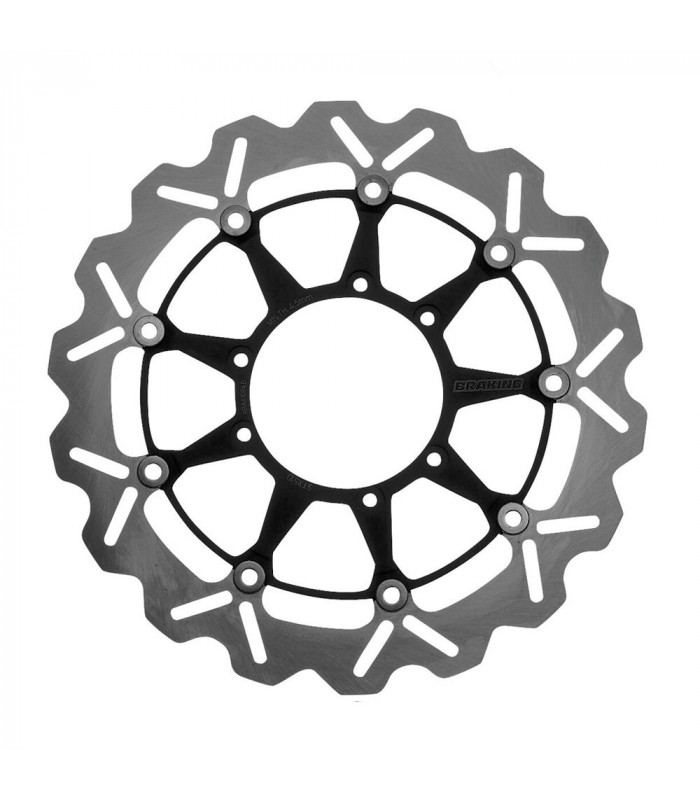

BRAKING STX12D W-FLOW DISC SUZUKI GS, GSF, GSX (1989-2007)

For Suzuki GSF Bandit 250 (1990), GS 400 (1989), GSF Bandit 400 (1989-1996), GS 500 E (1989-2003), GS 500 F (2004-2007), RF 900 (1994-1997), GSF Bandit 1200 (1996-2005), GSX Inazuma 1200 (1999-2002).

Outer and inner diameter of the disk have a non-round design that enables better radial expansion of the rotor under extreme heat conditions. Moreover piercing holes are replaced by edges specifically designed to grow brake pad regeneration process. Features: Auto-ventilated and perfect and perfect efficiency at high temperatures. Extremely slight. Improved feel. More braking grip.

- Outer Diameter: 310,00
- Inside Diameter: 64,00
- Thickness: 5,00
- Number Of Holes: 5
- Bolt Pattern: 86,00
- Holes Diameter: 10,50
- Holes Type: Deburred
- Floating: Floating
- Outline: Wave
- Outer Ring Type: Lightening holes
- Finishing: Painting
- Material: Aisi420
- Carrier Surface Treatment: Anodization
